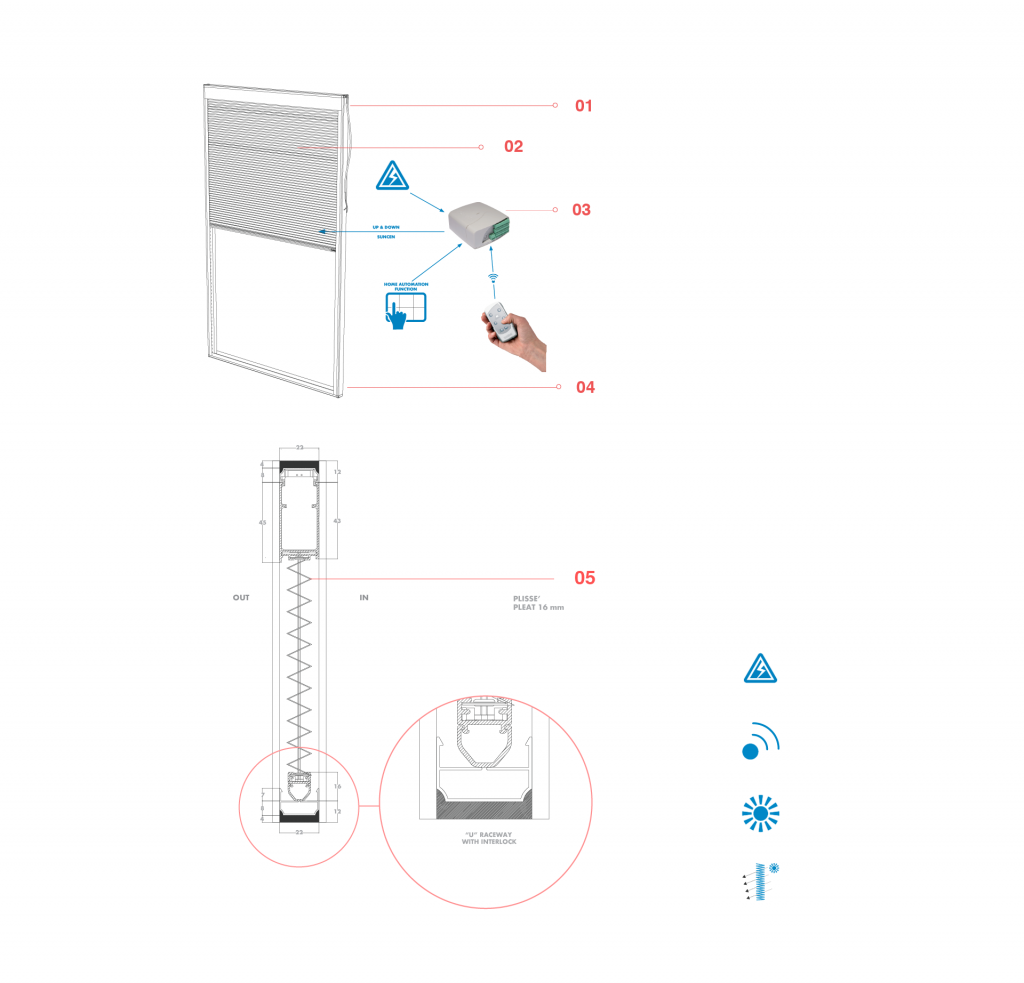

Plissé blind in double glazing with control unit with 2-4-6-8-10-12 channels which allows moving single and/or group movement of blinds automatically or manually through wall buttons. Great versatility of the system thanks to the small section of wires to use,
the great distance of the control unit from the connected blinds, the possibility of having the version with radio receiver to use remote radio control as well, possibility of connection to the home automation system.
Micro-reduction gear with diam. 18mm, placed in a special plastic support inside the aluminium profile. This micro-reduction gear is controlled by a special 12V motor, controlled by the control unit. Transmission ratio R=231. Slow shaft speed -30/40RPM. Max. current absorbed 1A Precise broached steel body (degree 7) M0.40 high precision gears, in treated steel, mechanically machined. Slow shaft supported by 2 ball bearings diam. 8/16 H5.
Polyester with 16mm pleat, not flameproof, colours available: 5.
Electronic control unit with 2-4-6-8-10-12 channels to manage movement of blinds and their endblocks. Management of fast automatic function until endblocks or to the desired level and slow single and/or group manual function. Software system with power supply management and safety management in case of accidental blockage of blind. Possibility of movement through wall button or radio control, system can be connected to home automation system.
The extruded profiles are made from aluminium alloy EN AW 6060 with a chemical composition defined by standard EN 573-3, created to the design and according to an innovative project by the SunBell technical department. The metallurgical state of supply is T5 unless otherwise specified, according to the standard UNI EN 5415, with mechanical characteristics according to standard UNI EN-755-2. Chemical silver oxidised box and back.
Dimensions of box: 22 x 44.90 (part with flap)/42.90 (part without flap) mm.
Dimension of back: 16 x 12,60mm.
Cords made from 100% polyester with 100% 280/2 x 3
Entwined polyester core: 16 ends
Diameter: 1mm
Traction resistance: 120-200N
Treatment: stabilised
Colour tests: Xenon test 6.
