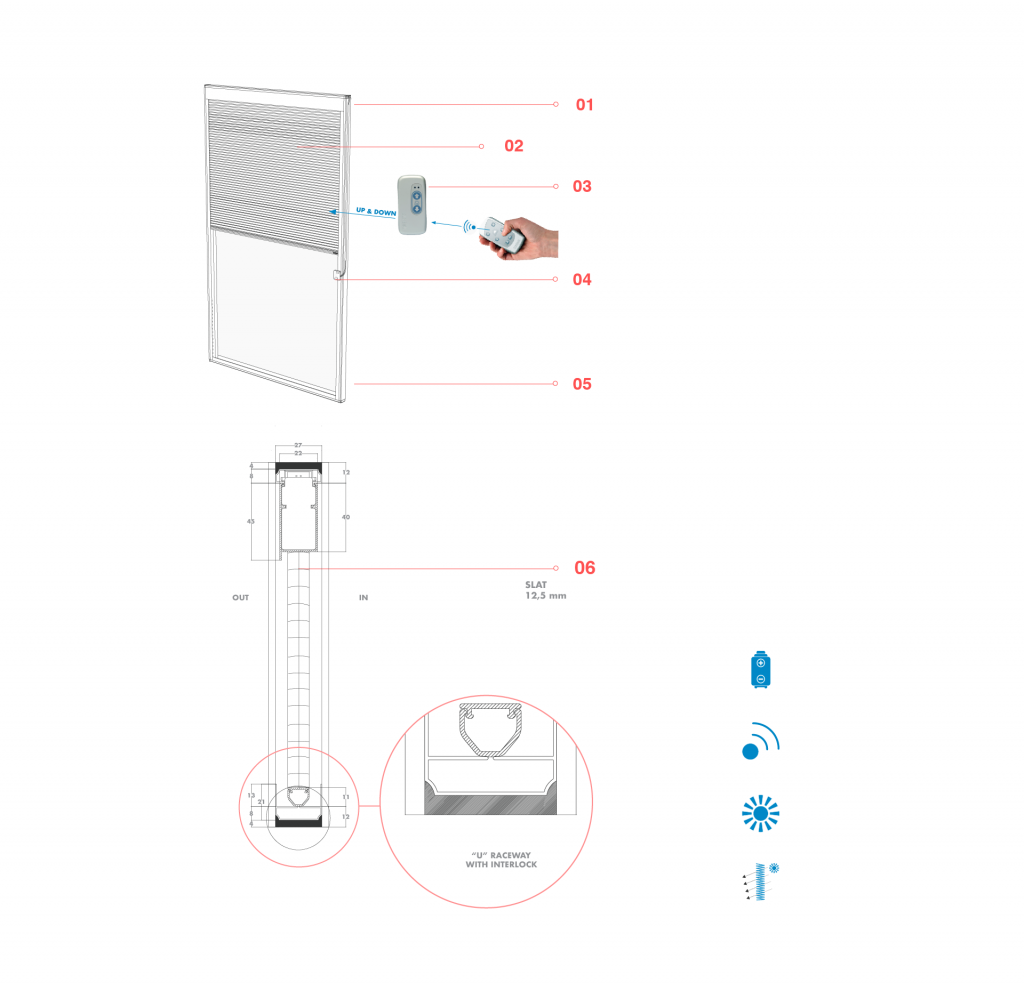

First patented system of Venetian blinds in double glazing with magnetic transmission wireless actuator. This extremely innovative system works through a battery actuator which can be recharged using the special battery charger.
No electrical wiring required. By placing this actuator on the respective magnetic connector fixed to the window or frame, the up or down impulse can be transmitted in the fast automatic function or in the slow manual function pressing the arrow buttons on it.
Head and bottom rails are made of EN AW 6060 alloy. Alloy chemical composition defined by standard EN 573-3. The state of supply is T5 unless otherwise specified, according to the standard UNI EN 5415, with mechanical characteristics according to standard UNI EN-755-2. Head and bottom rails are powder coated to match the colour of the slats.
Also available in the version with radio receiver and with battery pack recharge aid through a photovoltaic panel.
Main alloy used for the slats: AA 6011. Dimensions: width 12.5 mm, thickness 0.21 mm. Alloy chemical composition following the directives of the Aluminium Association and chosen for its remarkable mechanical properties and stability. This material is particularly suitable for uses requiring NO-FOGGING properties as in the case of insertion in double-glazing unit. All the layers of the laminate of the slat are cold pre-treated to guarantee perfect and lasting adhesion of the paint and considerable resistance against conditions of high humidity. The slat, chemically pre-treated, is supplied with a finish suitable for indoor applications. The decorative finish usually consists of a single coat of polyester. This finishing process is subject to controls on the line. The process and final quality selection ensures that the material is fogging-free. Nine colours of slats available. All the tests performed in conformity with EN standards and others that include internationally accepted specifications and testing methods.
Rechargeable lithium battery actuator with electronics for blind movement operation and end limits management. Fast automatic function until end limit or to the desired level and slow manual function to tilt the slats. Software system with tamperproof function and motor power supply protection. Red LED when battery is low.
Plate with two cables and AMP connector for connection to blind and magnetic connector, easy to apply to glass or frame.
Connector dimensions: 25 x 30 x 5 mm.
Two tapered holes for fixing to the frame and specific bi-adhesive for sticking to the glass.
Side, lower and upper spacers are made of EN AW 6060 alloy. Alloy chemical composition defined by standard EN 573-3. The state of supply is T5 unless otherwise specified, according to the standard UNI EN 5415, with mechanical characteristics according to standard UNI EN-755-2.
Made from 100% polyester with 100% 280/2 x 3 entwined polyester core.
Entwinding: 16 ends
Diameter: 1mm
Traction resistance: 120-200N
Treatment: stabilised
Colour tests: Xenon test 6
Ladder braids: Made from 100% polyester
Construction of ladder braid: two cables without distance
Resistance to traction on both sides: 240N
Colour test: Xenon test 5
Pitch: 10 mm
Micro-reduction gear with diam. 18mm, placed in a special plastic support inside the aluminium profile. This micro-reduction gear is controlled by a special 12V motor, controlled by the actuator. Transmission ratio R=231. Slow shaft speed -30/40RPM. Max. current absorbed 1A Precise broached steel body (degree 7) M0.40 high precision gears, in treated steel, mechanically machined. Slow shaft supported by 2 ball bearings diam. 8/16 H5.
The main alloy used for the slats in alloy AA 6011. Dimensions; width 12.5mm, thickness 0.21mm. The chemical composition of this alloy is made following the directives of the Aluminium Association and has been chosen for its remarkable mechanical properties and their stability. This material is particularly suitable for uses requiring NO-FOGGING properties as in the case of insertion in double-glazing. All the layers of the laminate of the slat are cold pre-treated to guarantee perfect and lasting adhesion of the paint and considerable resistance against conditions of high humidity. This thermo-stop treatment means that the slats, made of these layers, behave exactly as a heat regulator. The slat, chemically pre-treated, is supplied with a finish suitable for indoor applications. The decorative finish usually consists of a single coat of polyester. This finishing process is subject to stringent controls on the line. The process and final quality selection ensures that the material is free of fogging. 9 colours of slats available. All the tests are performed in conformity with EN standards and others that include internationally accepted specifications and testing methods.
Rechargeable lithium battery actuator with electronics for blind movement operation and endblocks Management of fast automatic function until endblocks or to the desired level and slow manual function to incline the slat. Software system with tamperproof function and motor power supply protection, red LED when battery is flat, green LED when charging and functioning. Safety management in case of accidental blockage of blind. Also available in the version with radio receiver and with battery pack recharge aid through a photovoltaic panel.
Plate with two cables and Amp connector for connection to blind and magnetic connector, easy to apply to window or to frame. Connector dimensions 25 x 30 x 5mm high with two tapered holes for fixing to frame and specific biadhesive for sticking to glass.
The extruded profiles are made from aluminium alloy EN AW 6060 with a chemical composition defined by standard EN 573-3. The metallurgical state of supply is T5 unless otherwise specified, according to the standard UNI EN 5415, with mechanical characteristics according to standard UNI EN-755-2. Box and back powder coated to match the colour of the slats.
Dimensions of box:
22×44.90 (part with flap)/39.90
(part without flap) mm.
Dimension of back:
11 x 12,60mm.
Cords made from 100% polyester with 100%
280/2×3 entwined polyester core.
Entwinding: 16 ends
Diameter: 1mm
Traction resistance: 120-200N
Treatment: stabilised
Colour tests: Colour test: Xenon test 6 – Ladder braids: Made from 100% polyester-construction
of ladder braid: 2 cables without distance –
resistance to traction on both sides: 240N –
colour test: Xenon test 5 – pitch: 10mm.
Micro-reduction gear with diam. 18mm, placed in a special plastic support inside the aluminium profile. This microreduction gear is controlled by a special 12V motor, controlled by the actuator. Transmission ratio R=231. Slow shaft speed -30/40RPM. Max. current absorbed 1A Precise broached steel body (degree 7) M0.40 high precision gears, in treated steel, mechanically machined. Slow shaft supported by 2 ball bearings diam. 8/16 H5.
The main alloy used for the slats in alloy AA 6011. Dimensions; width 12.5mm, thickness 0.21mm. The chemical composition of this alloy is made following the directives of the Aluminium Association and has been chosen for its remarkable mechanical properties and their stability. This material is particularly suitable for uses requiring NO-FOGGING properties as in the case of insertion in double-glazing. All the layers of the laminate of the slat are cold pre-treated to guarantee perfect and lasting adhesion of the paint and considerable resistance against conditions of high humidity. This thermostop treatment means that the slats, made of these layers, behave exactly as a heat regulator. The slat, chemically pre-treated, is supplied with a finish suitable for indoor applications. The decorative finish usually consists of a single coat of polyester. This finishing process is subject to stringent controls on the line. The process and final quality selection ensures that the material is free of fogging. 9 colours of slats available. All the tests are performed in conformity with EN standards and others that include internationally accepted specifications and testing methods.
A Rechargeable lithium battery actuator with electronics for blind movement operation and endblocks Management of fast automatic function until endblocks or to the desired level and slow manual function for orientamento lamellas. Software system with tamperproof function and motor power supply protection, red LED when battery is flat, green LED when charging and functioning. Safety management in case of accidental blockage of blind. Also available in the version with radio receiver and with battery pack recharge aid through a photovoltaic panel.
Plate with two cables and Amp connector for connection to blind and magnetic connector, easy to apply to window or to frame. Connector dimensions 25 x 30 x 5mm high with two tapered holes for fixing to frame and specific biadhesive for sticking to glass.
The extruded profiles are made from aluminium alloy EN AW 6060 with a chemical composition defined by standard EN 573-3. The metallurgical state of supply is T5 unless otherwise specified, according to the standard UNI EN 5415, with mechanical characteristics according to standard UNI EN-755-2. Box and back powder coated to match the
colour of the slats.
Dimensions of box: 22 x 44.90mm
(part with flap)/39.90 (part without flap)
Dimension of back: 11×12,60mm
Cords made from 100% polyester with 100% 280/2×3 entwined polyester core.
Entwinding: 16 ends
Diameter: 1mm
Traction resistance: 120-200N
Treatment: stabilised
Colour tests: Xenon test 6
Ladder braids: Made from 100% polyester –
Construction of ladder braid: 2 cables without distance
Resistance to traction on both sides: 240N
Colour test: Xenon test 6
Pitch: 10mm
Diameter: 1mm
Traction resistance: 120-200N
Treatment: stabilised
Colour tests: Xenon test 6.
